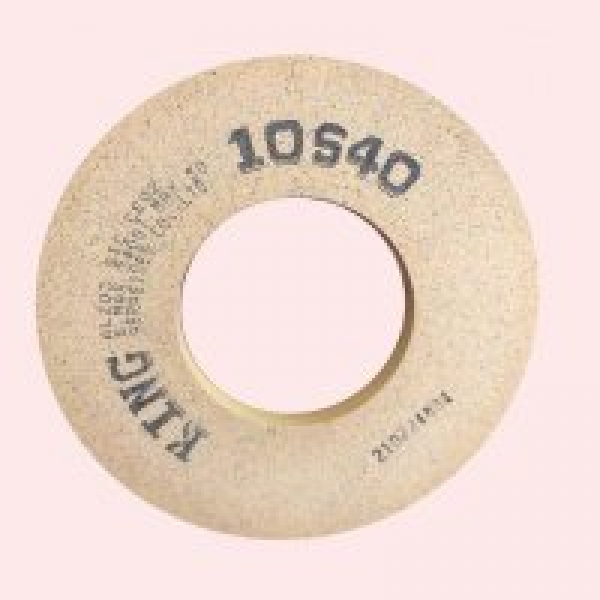

10S wheel, also known as water pine wheel, is mainly used for flat glass bottomedge, bevel and chamfer polishing, suitable for straight edge machine, bevelmachine, shaped machine bevel. My company's products are divided into threegrades: high-grade wheel, mid-grade wheel and low-grade wheel. Among them, thehigh grade and the middle grade are high-end products in China.
10S-IIIhigh-grade wheel: uniform porosity, strong cutting force, long life, eliminatethe front diamond wheel resin wheel lines, brightness is not very good, you canshine through the glazing wheel;
Configuration:Diamond wheel + resin wheel + fine grinding wheel (10S-3) +10S60-2+ glazerwheel
Typicalglass edge processing technology: diamond rough grinding wheel → diamond finegrinding wheel →10S series polishing abrasive tools.
Canchoose according to the specific requirements of glass edge processing whichtype of 10S series polishing abrasive, can also determine whether to use ceriumoxide polishing abrasive according to the polishing requirements of glass edge.
Name | Outside diameter | Thickness | Inside diameter | |
10S Series | 10S40/60/80/120 bottom rim wheel | 150,175,200 | 30,35,40 | 70,50,22 |
10S chamfer wheel | 125,130 | 30, 35 | 70,60,50,22 | |
50,100 | 25,30,35 | |||
