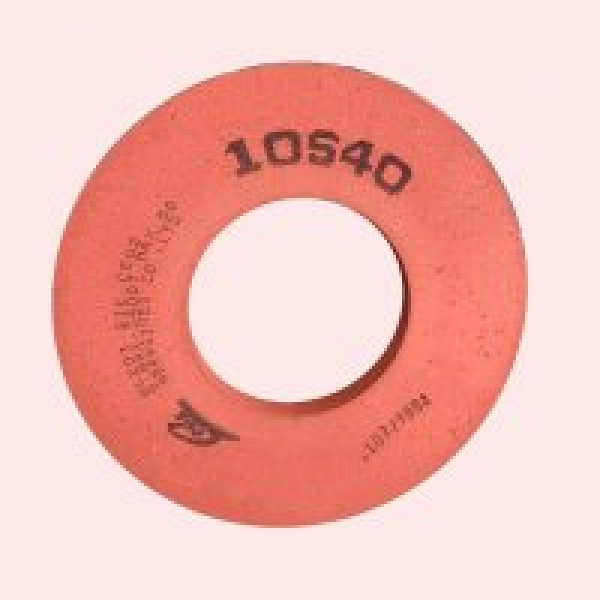

10Swheel, also known as water pine wheel, is mainly used for flat glass bottomedge, bevel and chamfer polishing, suitable for straight edge machine, bevelmachine, shaped machine bevel. In order to meet the needs of the market,different products are launched for customers to choose to use.
10S-II(with chassis) : uniform surface porosity, high cutting efficiency, goodpolishing brightness, stable performance. 10S40+10S60 can meet the polishingbrightness requirements of sanitary ware, home appliances and stair handrailsunder the condition of 8mm board speed of 10 meters/min. Mainly used forstraight edge machine, bilateral grinding machine.
Typicalglass edge processing technology: diamond rough grinding wheel → diamond finegrinding wheel →10S series polishing abrasive tools.
Accordingto the specific requirements of glass edge processing, we can choose to use theappropriate 10S series polishing abrasive, and can also determine whether touse cerium oxide polishing wheel according to the polishing requirements ofglass edge.
Name | Outside diameter | Thickness | Inside diameter | |
10S Series | 10S40/60/80/120 bottom rim wheel | 150,175,200 | 30,35,40 | 70,50,22 |
10S bottom side wheel | 125,130 | 30, 35 | 70,60,50,22 | |
50,100 | 25,30,35 | |||
