C series Use: automatic removing film machine, manual removing film machine,point removing film machine, double straight edging machine and so on
Thelow-e glass removing film wheel produced by our company has the characteristics of strong removing film ability, long life and wide applicability. We canprovide applicable product models according to different film systems and filmremoval requirements.
C series products in 25 degrees Celsius to 350 degrees Celsius warming processwithout melting process, direct carbonization, in addition to the film does notremain, conducive to sealing adhesive bonding, strong adaptability to the filmsystem, in the international leading level.
Unit:mm
Name | Outside diameter | Thickness | Inside diameter |

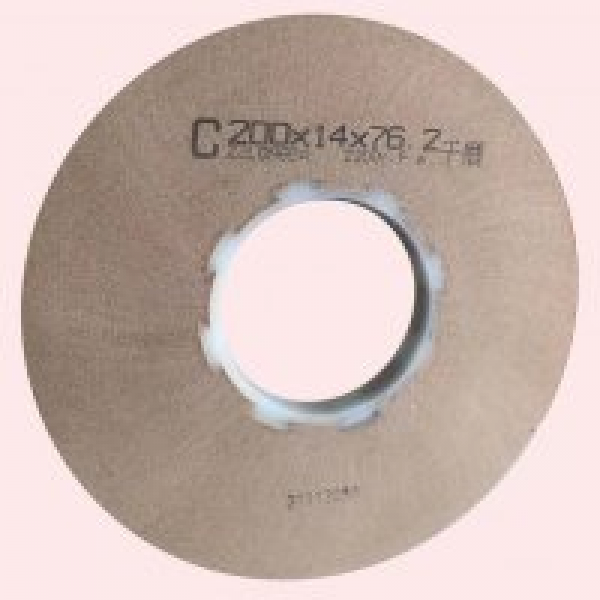

LOW-E glass film removal wheel (Dry film wheel) | 200,150 | 8.5, 10,12,13,15,17,20,22,26 | 130,76.2 |
100,60,50 | 8.5, 10,12,14,15,17,20 | 22,16,8.6 | |
LOW-E glass removal wheel (wet grinding wheel) | 200,150 | 8.5, 10,12,14,15,17,20 | 76.2, 50, 22 |
150 cup type | 12,14,15,17,20 | 50,25,22,16 |
