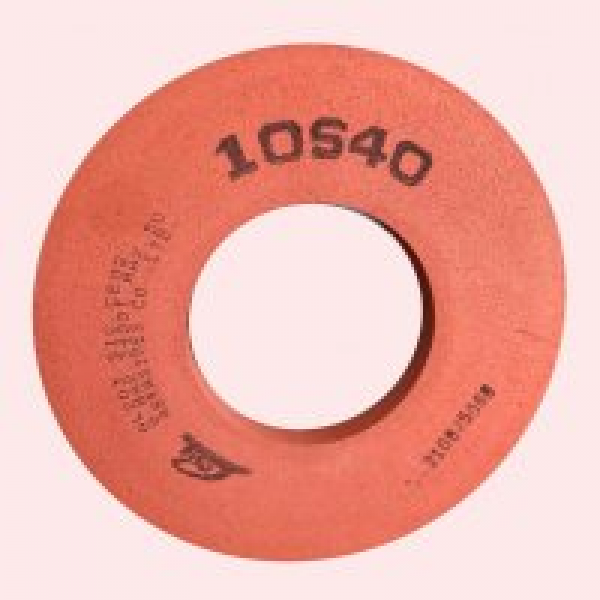

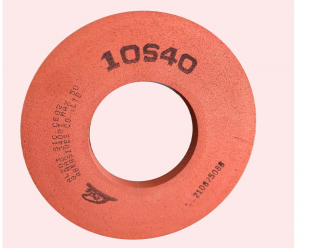

10S wheel, also known as water pine wheel, is mainly used for flat glass bottom edge, bevel and chamfer polishing, suitable for straight edge machine, bevel machine, shaped machine bevel. In order to meet the needs of the market, different products are launched for customers to choose to use.
10S-I (with chassis) : long life, stable performance can not fall off the bottom, mainly used for building, door and window glass polishing, mainly used for straight edge machine, bilateral grinding machine.
Typical glass edge processing technology: diamond rough grinding wheel → diamond fine grinding wheel →10S series polishing abrasive tools.
According to the specific requirements of glass edge processing, we can choose to use the appropriate 10S series polishing abrasive, and can also determine whether to use cerium oxide polishing wheel according to the polishing requirements of glass edge.
Name | Outside diameter | Thickness | Inside diameter | |
10S Series | 10S40/60/80/120 bottom rim wheel | 150,175,200 | 30,35,40 | 70,50,22 |
10S bottom edge wheel | 125,130 | 30, 35 | 70,60,50,22 | |
50,100 | 25,30,35 | |||
