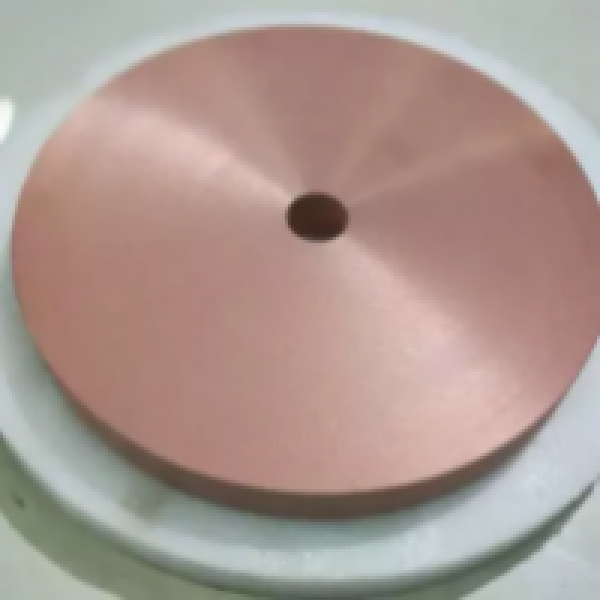

Scope of application: This series of products are used for flat grinding machine and polishing machine. Synthetic copper plate is also known as resin copper plate, it is suitable for ceramic, sapphire, crystal, monocrystalline silicon sheet, optical glass, stainless steel, die steel, aluminum and other metal materials and non-metallic materials grinding; Generally used for grinding and fine grinding and other processes.

Applicable equipment: Widely used in imported (Ingels, Kermit, NTS, Chuangji, Keles and other equipment) and domestic surface grinding equipment.

Common size (outer diameter) : 380mm, 460mm, 610mm, 810mm, 910mm, 1270mm

Thickness of base (base) : 30-45mm; General selection of substrate material: 304 stainless steel or 6001 national standard aluminum.

Commonly used particle size: 50 mesh, 100 mesh, 200 mesh, 300 mesh, 400 mesh, 500 mesh;

CBN working layer thickness: 12.5mm-13.5mm, thickness requirements, can be made according to customer requirements.

Product advantages: firmly fixed diamond particles, to ensure the cutting efficiency and machining parts of the surface of good roughness; With ductility, the diamond particles play a cushioning role to avoid damage to the workpiece; Good product stability, high removal rate, good heat dissipation during grinding, to avoid stains and discoloration on the surface of the grinding workpiece; Good operability, good shaving, small damage to the shaving knife; Good safety, environmentally friendly materials, safe and non-toxic; Long service life; Factory direct sales, low price!
